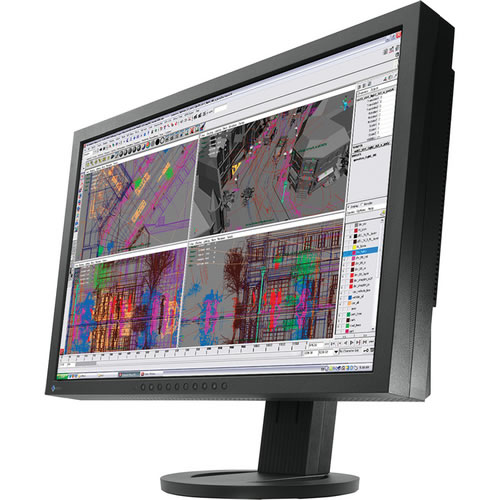

Eizo SX2262W-BK 22" Wide LCD Screen
The FlexScan SX2262W 22" LCD Computer Display from EIZO is a high-quality computer monitor built with colour-critical applications in mind. The display supports a wide colour gamut -- at any instant, it is capable of displaying 16.77 million colours from a palette of 278 trillion via either of its DVI input ports. When you connect it via DisplayPort, it can display 1.07 billion colours simultaneously from the same palette. It features a 1920 x 1200 native resolution, 1000:1 contrast ratio, 280cd/m² brightness rating, 12ms response time, and 178°/178° viewing angles.
An integrated 2-port USB 2.0 hub makes it easy to connect peripheral devices to the display. A number of preset modes, including an eco mode that adjusts brightness based on ambient light, are available for your convenience. The display can connect to your computer via DVI-I, or DisplayPort. It ships with a FlexStand desktop stand that features adjustments for height, tilt, swivel, and pivot.
Key Features
- DVI-I + DVI-I + DisplayPort
- 1920 x 1200
- 1000:1 Contrast
- 280cd/m² Brightness
- 178°/178° Viewing Angles
- 12ms Response Time
- 16.77 Million Colours via DVI
- 1.07 Billion Colours via DisplayPort
- HDCP Compliance
- 2-Port USB 2.0 Hub
Wide Colour Gamut
The monitor reproduces 95% of the Adobe RGB colour space so it can display most colours in a digital photo taken in Adobe RGB mode. Furthermore, it also has an sRGB mode to accurately reproduce colours in this narrower but commonly used colour space, such as those seen on web pages or digital photos taken in sRGB mode.
High Resolution Screen
The FlexScan SX2262W features a 1920 x 1200 native resolution. Compared to the 1680 x 1050 native resolution of most 22" monitors, this is approximately 30% more information in the same amount of screen space.
Three Inputs Including DisplayPort
Connect with up to three PCs via the monitor's dual DVI-I inputs which accept digital and analog signals, and the DisplayPort (digital) input terminals. DisplayPort is next-generation connectivity that transmits both video and audio signals.
10-bit Simultaneous Display
The monitor can display 10-bit colour from a 16-bit look-up table via its DisplayPort input. This is more than 1 billion colours shown simultaneously which is 64 times greater than the 16.7 million colours of 8-bit display. The result is even smoother colour gradations and reduced Delta-E between two adjacent colours.
Brightness and Colour Uniformity with DUE
Fluctuations in brightness and chroma on different parts of the screen are characteristic of LCD panels. Generally, the larger the screen, the more noticeable these uniformity errors become. EIZO's Digital Uniformity Equalizer (DUE) helps to compensate for these errors, resulting in a much more uniform image.
Preset Modes
Different types of creative work require different colour settings. To ensure you get the right settings without having to fiddle with the OSD menu, this monitor comes with three customizable preset modes for assigning your own values for brightness, contrast, colour temperature, and gamma. In addition, Text, Picture, Movie, and sRGB modes are also included. Modes switch automatically with the bundled ScreenManager Pro for LCD software, or manually with the press of a button.
Detailed Colour Control
The OSD menu and bundled ScreenManager Pro for LCD software offers adjustment of brightness, gamma, saturation, hue, gain and colour temperature from 4000K to 10,000K in 500K increments. For fine-tuning of even a single colour, the hue and saturation settings for red, green, blue, cyan, magenta, and yellow can be adjusted independently.
More Effective Software Calibration
In creative design work, Software Calibration is typically necessary to achieve accurate colour values. The FlexScan SX2262W, however, already provides extensive colour adjustment functions in the OSD menu. This means that any software calibration you do will help to achieve a very precise grayscale ramp for improved display of dark tone details as well as overall colour accuracy.
Brightness and Colour Temperature Stability
To ensure proper display of colour, the FlexScan SX2262W comes equipped with patented EIZO technology that stabilizes the monitor's brightness level after startup or coming out of power saving mode. Furthermore, a temperature sensor detects and automatically suppresses changes in colour and brightness caused by fluctuations in the surrounding temperature.
Fast Response Time
An overdrive circuit is included to reduce gray-to-gray response time to 5ms and ensure that movies and other moving images look clean and sharp with an absolute minimum of blurring and ghosting.
Placement Flexibility
The FlexScan SX2262W comes with a "FlexStand" that offers tilt, swivel, 90° rotation for portrait mode viewing, and 6.9" (17.4cm) of height adjustment. Its innovative, bearing-less design reduces mechanical wear and the amount of torque required to adjust height.
Scale Non-Native Resolutions to Full Screen
When working at less than native resolution or aspect ratios other than 16:10, you can use the scaling function to enlarge your work proportionally or expand it to fill the screen. You can then smooth or sharpen the image in five increments.
Colour Vision Deficiency Simulation
To avoid creating inconveniences and even dangers for those with colour vision deficiency, care must be taken when choosing colour schemes for everyday items such as maps, road signs, web sites, and power indicator lights. This monitor can instantly simulate how still and moving images appear to people with two types of red-green (protanopia and deuteranopia) and one type of blue-yellow (tritanopia) colour vision deficiency.
Optimized Brightness with Auto EcoView
A sensor on the front of the monitor measures ambient light and optimizes the screen's brightness to ensure the screen is never too bright or too dark. If preferred, Auto EcoView can be deactivated in the OSD menu.
On-Screen Button Guide
Graphics professionals often work in a dimly lit environment which can make it difficult to read a monitor's adjustment buttons. The SX2262W, however, includes an on-screen button guide that labels what each of the buttons are for so you can easily navigate the OSD menu.
Energy and Environmental Efficiency Index
A user-activated EcoView Index displays the level of power savings and equivalent amount of C02 reduction compared to using the monitor without Auto EcoView activated and with the screen set at a brightness of 100%.
Simple Colour Matching with EIZO EasyPIX
The EIZO EasyPIX colour matching tool is ideal for digital SLR camera users looking to match colours between their monitors and photo prints. With the EasyPIX software you can match the monitor's colour and brightness with that of the photo paper and then create a monitor profile with the bundled EX1 colour sensor. No expertise in colour management is required and the profile can be shared with image retouching software to ensure accurate results when printing.
Commitment to Quality
While outsourcing production is now common practice in the monitor industry, EIZO continues to manufacture its products the same way it has throughout its 40 year history - with its own staff at its own factories. This allows EIZO to keep close control over production quality and offer the industry's only 5-year manufacturer's limited warranty.
What's Included:
- Eizo FlexScan SX2262W 22" LCD Computer Display (Black)
- AC Power Cord
- DVI Cable
- DVI to VGA Cable
- USB Cable
- EIZO LCD Utility Disc (PDF User's Manual, ScreenManager Pro, ScreenSlicer)
- Setup Guide
- 4 x Screws
- Limited Warranty
