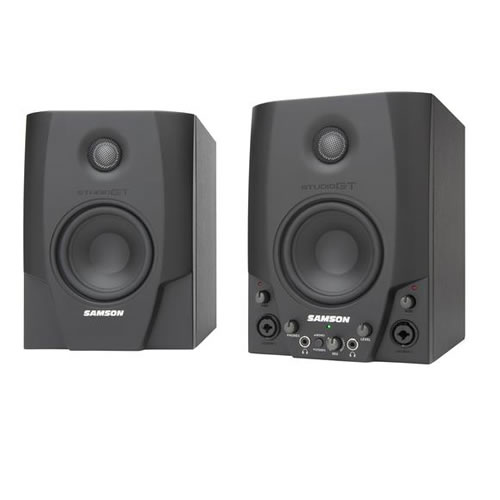

Samson 2x20W Active 4.25" Monitor W/USB Audio Interface (Pair)

Close »

WebCode: 261650 Mfr item: STUDIOGT

Price:	$209.95

Detailed Specifications
TRANSDUCERS
Woofer	4” polypropylene with santoprene surround
Tweeter	1-inch silkdome ferro fluid neodymium tweeter
Frequency response	65Hz - 22kHz
Amplifier Power	2 x 18 Watts RMS
Crossover Frequency	HPF: 4kHz, 6 dB/oct Butterworth; LPF: 1400Hz, 12 dB/oct Linkwitz-Riley
MICROPHONE INPUT
Connector	XLR (1: GND, 2: HOT, 3: COLD)
Input impedance	1.4 kΩ
Input level	-40 dBu (Trim max) to -5 dBu (Any gain)
Equivalent Noise Level	-120 dBu (A-weighted)
Phantom Power	+48V
LINE/INSTRUMENT INPUT
Connector	¼” Phone jack unbalanced (Tip: HOT, Sleeve: GND)
Input impedance	1 MΩ
Input level	-14 dBu (Trim max) to +20 dBu (Any gain)
Aux Input Connectors	RCA, 3.5mm
HEADPHONE OUTPUTS
Connector	1⁄8” Phone jack (Tip: L, Ring: R, Sleeve: GND)
Output Power	50 mW at 32Ω 1% THD+N
USB AUDIO
Connector	USB 2.0 - B type
ADC and DAC (Internal)	16 bit delta sigma, 44.1kHz or 48kHz
Input dynamic range	93 dB (A-weighted)
Output dynamic range	>90 dB (A-weighted)
ENCLOSURE
Construction	MDF
Finish	Black textured vinyl covering
Dimensions	6.625” W x 7.625” D x 9.125” H (168mm W x 194mm D x 232mm H)
Weight	9.5 lb / 4.3 kg
