Eizo CG275W-BK 27" Wide Screen LCD
The ColorEdge CG275W 27" Widescreen LCD Display from EIZO is a high-quality monitor with its own built-in calibration sensor. With this sensor, the display can be programmed to calibrate itself on a schedule, whether it's on or off. You can also calibrate it to the measurement results of an external sensor, if you plan on using the display with other ColorEdge displays. If you want to tweak calibration values, you can utilize the ColorNavigator software to set brightness, white point, and gamma first.
This display is built to the stringent standards required by pre-press, digital photography, video editing, and post production applications. The display features a 2560 x 1440 native resolution, a stunning 850:1 contrast ratio, and 270cd/m² brightness. It features a DVI-I, mini DisplayPort, and DisplayPort inputs. Both the mini DisplayPort and DisplayPort support HDCP. It also can function as a hub with three USB ports.
If colour accuracy is essential to your work, this display has a number of reassuring features. It reproduces 97% of the Adobe RGB colour space, utilizes a 3D LUT for a better colour mixture, features factory calibrated gamma, can stabilize brightness and colour temperature, and can smooth out brightness levels on every part of the display. Colour deficiency simulation, 10-bit simultaneous display support, and 16-bit internal processing add to the impressive list of features. To save energy, the display can shut sense when you aren't around and go into a power saving mode. It comes with a stand that can tilt, swivel, and pivot as well as a hood that can be used in portrait or landscape mode.
- Self-Calibrating with Built-in Sensor
- DVI-D + Mini DisplayPort + Display Port
- 2560 x 1440 Resolution
- 850:1 Contrast
- 270cd/m² Brightness
- 178°/178° Viewing Angle
- 6ms Response Time
- 1.07 Billion Colors
- IPS Panel
- Monitor Hood and Stand
Built-In Calibration Sensor

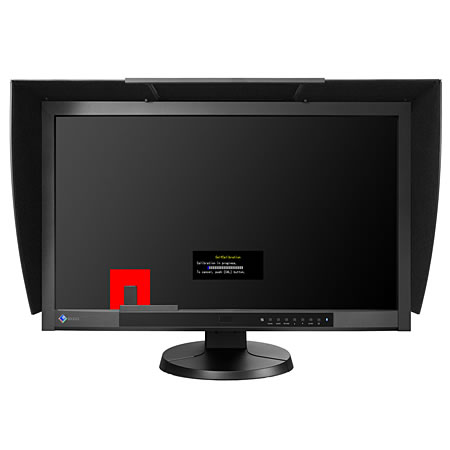

Built-in sensor is housed within the monitor's bottom bezel and swings up onto the screen when calibration begins. This sensor eliminates the need for a third-party calibration device and even operates in portrait mode.
Using either the OSD menu or the bundled ColorNavigator software, you can schedule the ColorEdge CG275W to self-calibrate at specific times. Reassuringly, even if the monitor is switched off or not even connected to a computer, it will stick to its preset schedule and self-calibrate.
Since the PC itself is not necessary for self-calibration, the ability to calibrate the monitor is not dependent on using an operating system supported by the ColorNavigator software.
Correlation with Other Sensors
The ColorEdge CG275W can be correlated to the measurement results of an external calibration sensor. This is convenient if the ColorEdge CG275W is used in a work environment with other ColorEdge monitors. One measurement device must be used as a standard for all calibrating.
Simple and Precise Calibration with ColorNavigator
The bundled ColorNavigator software makes calibration both simple and quick. Just input target values for brightness, white point, and gamma. The built-in sensor directly utilizes the monitor's look-up table and creates an ICC profile within minutes. What's more, you can always download the latest version of ColorNavigator for free from Eizo.
Wide Area, High Resolution Screen
The ColorEdge CG275W features a 2560 x 1440 native resolution across its 27" screen. This is more than double the pixels of a 19" monitor with a 1280 x 1024 resolution and 60% more than a monitor with a 1920 x 1200 resolution. This gives you plenty of room to spread out your windows and palettes.
Wide Colour Gamut
The monitor reproduces 97% of the Adobe RGB colour space so it can display most colours in a digital photo taken in Adobe RGB mode. Furthermore, it also has an sRGB mode to accurately reproduce colours in this narrower but commonly used colour space, such as those seen on web pages or digital photos taken in sRGB mode.
Three Inputs Including DisplayPort
DVI-D, DisplayPort, and Mini DisplayPort are included. DisplayPort and Mini DisplayPort accept both video and audio signals simultaneously. Mini DisplayPort also offers the benefit of connecting with Mac and Windows-based notebook computers.
10-Bit Simultaneous Display
The monitor can display 10-bit colour from a 16-bit look-up table via its DisplayPort input. This is more than 1 billion colours shown simultaneously which is 64 times greater than the 16.7 million colours of 8-bit display. The result is even smoother colour gradations and reduced Delta-E between two adjacent colours.
Please Note: A graphics board and software which support 10-bit output are also necessary for 10-bit display.
Brightness and Colour Uniformity with DUE
Fluctuations in brightness and chroma on different parts of the screen are a common trait of LCD monitors. To counteract this, the monitor incorporates an EIZO-developed digital uniformity equalizer (DUE). DUE ensures a Delta-E difference of 3 or less across the screen when the monitor leaves the factory.
3D LUT for Better Additive Colour Mixture
The monitor utilizes a new EIZO-developed 3D LUT. Whereas a typical 1D LUT adjusts colour on separate tables for each red, green, and blue, a 3D LUT accomplishes this on a single, mixed-colour cubic table. A 3D LUT improves the monitor's additive colour mixture (combination of RGB), a key factor in its ability to display neutral gray tones.
Factory Adjustment of Gamma
To ensure that each ColorEdge monitor produces the most accurate and consistent color gradations possible, EIZO carefully measures and sets every shade of R, G, and B from 0 - 255 on the production line with the monitor's 16-bit Look-Up Table, to produce a monitor gamma value of 2.2. Should the user prefer a different value, ColorNavigator software can be used to set the gamma value from a range of 1.0 up to 2.6 in increments of 0.1.
Verification Documents Included
EIZO stands behind the quality of the ColorEdge series by including two verification documents with each monitor. One document verifies the uniformity on 25 points across the screen while the other certifies that all 256 colour tones on the gamma curve were individually adjusted at the factory.
Brightness and Colour Temperature Stability
To ensure proper display of colour, the ColorEdge CG275W comes equipped with patented EIZO technology that stabilizes the monitor's brightness level after startup or coming out of power saving mode. Furthermore, a temperature sensor detects and automatically suppresses changes in colour and brightness caused by fluctuations in the surrounding temperature.
Ideal for Moving Image Work
An overdrive circuit is included to reduce gray-to-gray response time to 5 ms and ensure that moving images look clean and sharp with an absolute minimum of blurring and ghosting.

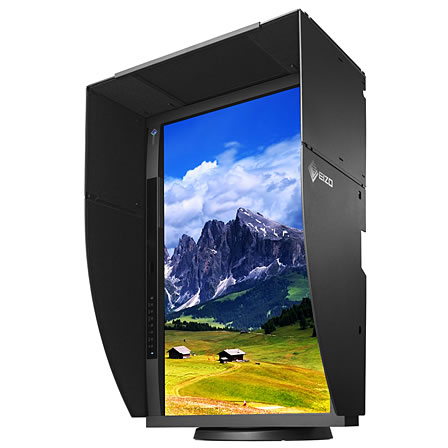

Shading Hood for Portrait and Landscape Modes
Most shading hoods can only be used in landscape mode, but the ColorEdge CG275W comes bundled with a unique shading hood that is designed for portrait mode as well. Now you can keep the glare off your screen no matter which mode you work in.
New Cabinet and Stand Design
The CG275W is the first ColorEdge monitor with a new cabinet and the FlexStand 2. The cabinet design maintains the distinct look of EIZO monitors while introducing a more smoothly rounded appearance. The FlexStand 2 complements the cabinet design while offering very versatile positioning with 152 mm height adjustment, 25° tilt, 344° swivel, and 90° rotation for portrait mode viewing.
Presence Sensor for Power Savings
EIZO's EcoView Sense feature unites convenience with energy savings by ensuring that the monitor automatically conserves power when it is not in use. EcoView Sense is an integrated presence sensor that prompts the monitor to switch to power save mode when it detects your absence, and then resume normal operation when you return. To prevent the screen from reactivating when it shouldn't, EcoView Sense differentiates between your presence and a still object like an empty chair or general office activity in the background.
Colour Vision Deficiency Simulation
To avoid creating inconveniences and even dangers for those with colour vision deficiency, care must be taken when choosing colour schemes for everyday items such as maps, road signs, web sites, and power indicator lights. This monitor can instantly simulate how still and moving images appear to people with two types of red-green (protanopia and deuteranopia) and one type of blue-yellow (tritanopia) colour vision deficiency.
LED Buttons and On-Screen Button Guide
For dimly lit work environments, the LED front buttons can be backlit to seven different brightness settings. An on-screen button guide appears above the buttons to indicate what each one is for.
Commitment to Quality
While outsourcing production is now common practice in the monitor industry, EIZO continues to manufacture its products the same way it has throughout its 40 year history - with its own staff at its own factories. This allows EIZO to keep close control over production quality and offer the industry's only 5-year manufacturer's limited warranty.
- Eizo ColorEdge CG275W 27" Widescreen LCD Display
- DVI-D to DVI-D Cable (With Dual-Link Support)
- Mini DisplayPort to Display Port Cable
- USB Cable
- Setup Guide
- EIZO LCD Utility Disk (with ColorNavigator software, PDF, User's Manual)
- Adjustment Certificate
- Screen Cleaner
- Monitor Hood
- Quick Reference
- Limited Warranty
