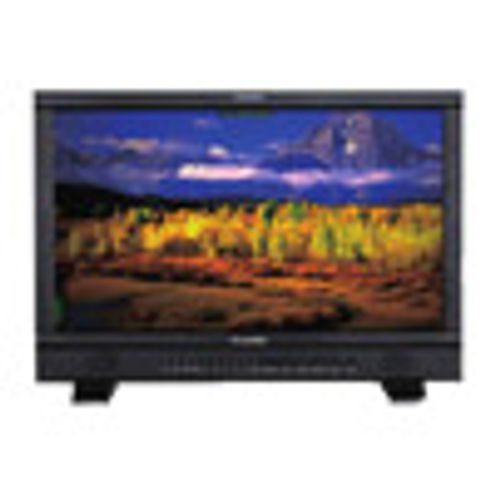

ProHD21.5"Broadcast Studio LED-Backlit LCD Monitor
No Reviews Q & A
Write your Review
  • Webcode: 424815 • Mfr: DT-N21H
Product Highlights
  • 55 cm (21.5") LCD Size
  • 52.5 x 35.8 x 8.7 cm (20.7 x 14 x 3.4") Dimensions
  • 6.2 kg (14 lbs) Weight
  • 48 x 27 cm (19 x 11") Display Area
  • 1920 x 1080 Resolution
  • 250 cd/m² Brightness
  • 11-17 VDC Battery
JVC Professional ProHD21.5"Broadcast Studio LED-Backlit LCD Monitor JVC Professional ProHD21.5"Broadcast Studio LED...
$2,799.99 Add to Cart
Add to Wishlist
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.
Lease this for: $107.24 Learn More

Overview

The DT-N21H supports 3G-SDI Level-A & B, 2K-SDI 60p Level-A & B display. The monitor features a 1920×1080 pixel full HD resolution LCD panel with LED backlighting, with 178° wide viewing angle (H & V), 1000:1 contrast, and 16.7M color depth. The DT-N21H is compatible with ITU-709 standard color space for HDTV broadcasting. The DT-N21H supports gamma preset selection from: 2.2, 2.4 and 2.6. The DT-N21H supports SDI/HDMI embedded audio 2-ch meters display, and analog audio 2-ch meters display. The DT-N21H monitor supports UMD controlling input via RS485 and RS232 port, compatible with TSL 3.1 and 4.0 UMD protocol.

Key Features:

  • Supports 3G/HD/SD-SDI and 2K-SDI

    DT-N21H supports 3G-SDI (SMPTE 425M) Level-A & B, 2K-SDI (SMPTE 2048-2) 60p Level-A & B display.

  • Full HD LCD panel with LED backlighting

    The monitor features a 1920×1080 pixel full HD resolution LCD panel with LED backlighting, with 178° wide viewing angle (H & V), 1000:1 contrast, and 16.7M color depth.

  • ITU-709 color space

    The DT-N21H is compatible with ITU-709 standard color space for HDTV broadcasting.

  • Selectable gamma preset

    The DT-N21H supports gamma preset selection from: 2.2, 2.4 and 2.6.

  • Audio meters display

    The DT-N21H supports SDI/HDMI embedded audio 2-ch meters display, and analog audio 2-ch meters display.

  • TSL UMD control and display

    The DT-N21H monitor supports UMD controlling input via RS485 and RS232 port, compatible with TSL 3.1 and 4.0 UMD protocol.

  • USB firmware upgradable

    The Monitor offers a USB port on the rear side, for firmware upgrade. Users can download firmware to a USB disk, and the upgrade operation is directly on the monitor, without PC or other adaptors.

What's Included

DT-N21H Monitor
AC-DC power adaptor
Gold mount plate
Desktop stand

Reviews

Product Specifications

JVC Professional Products ProHD 21.5" Broadcast Studio LED-Backlit LCD Monitor

LCD Display


Size 21.5 inches wide format
Display area 477mmx268mm
Resolution 1920x1080 (Full HD)
Colour depth 16.77 million
Aspect ratio 16:9
Brightness 250cd/m2
Contrast 1000:1
Viewing Angle 178°(H) / 178°(V)
Surface treatment Non-glass
Backlighting LED

General


Working voltage DC / battery 11V-17V
Power consumption Max 32W
Working temperature 0°C - +40°C
Working humidity 10-90%
Storage temperature 15°C - 60°C
Storage humidity 10-90%
VESA standard 100mmx100mm (M4x4mm screw)
Dimensions 525 x 358 x 87mm
Net weight (w/o stand) 6.2 kg

Compatible Video Formats


CVBS NTSC / PAL
Y/Pb/Pr 480i, 480p, 576i, 576p, 720p (50/60), 1080i (50/60)
480i / 576i / 480p / 576p
1080i (60 / 59.94 / 50)
HDMI 720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
2048x1080p 23.98 / 24 / 2 / 29.97 / 30 / 50 / 59.94 / 60)
SMPTE-2048-2 2048x1080i 50 / 59.94 / 60
SMPTE-425M

1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
SDI SMPTE-274M 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
640x480, 800x600, 1024x768x 1152x864x 1280x768
VGA 1280x960, 1280x1024, 1600x1200
