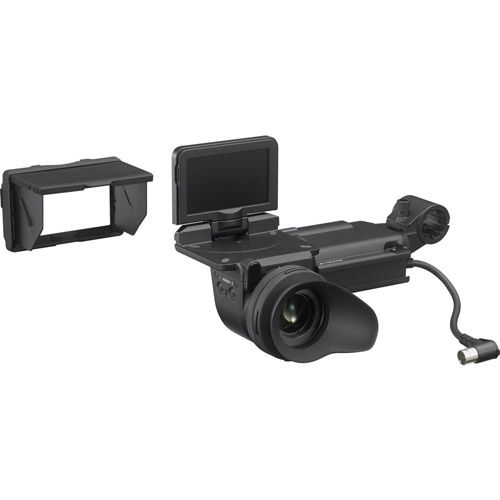

Sony HDVFEL30 OLED 0.7-inch Color Full HD Viewfinder with 3.5-inch sub-LCD

HDVF-EL30 OLED 0.7" Viewfinder

Bright high-end OLED viewfinder for 4K/HD system cameras and camcorders, with additional sub-LCD display
The HDVF-EL30 is a 0.7-inch (viewable area, measured diagonally) full HD OLED viewfinder, which enables quick pixel response for tracking and focusing on moving objects. It delivers outstanding high contrast and a wide dynamic range thanks to the use of revolutionary Organic Light Emitting Diode (OLED) display technology.

Key Features:

• 0.7" 1920 x 1080 Full HD Organic Light Emitting Diode Panel
• High Contrast Ratio
• Specially developed optical loupe
• Compatible with F65 digital motion picture cameras, 4K/HD system cameras and shoulder-type HD camcorders
• Effective assignable buttons

With its specially developed optical loupe, a high eye-point is possible .It allows operators to see a wider area of the picture if they stand back from the eye piece. The image displayed on the viewfinder can be downscaled by menu or assignable button to avoid vignetting.

Additional Features:

• 3.5" Quarter HD (960 X 540) sub-LCD Panel
• Display tally and camera number on sub-LCD
• Foldable hood for sub-LCD

The HDVF-EL30 is equipped with an additional 3.5-inch, quarter HD (960 x 540) sub-LCD display for direct monitoring over a longer distance. Using both sub-LCD panel and OLED displays, offers full operational flexibility enabling a camera assistant to monitor the sub-LCD display while the camera operator uses the OLED one. A tally indicator and the camera number can be displayed on the sub-LCD panel. The supplied foldable hood avoids sunlight reflection. The HDVF-EL30 viewfinder is compatible with a wide variety of cameras such as the F65 Sony motion picture cameras, 4K/HD system cameras and shoulder-type HD camcorders supporting the 20pin round HDVF interface.

0.7-inch 1920 x 1080 OLED panel

OLED technology – a self-emitting technology – guarantees highest contrast ratio. No smear or blur, reproduces motion with high fidelity. Easy to focus 4K image.

3.5-inch, quarter HD (960 x 540) sub-LCD display

Additional display for monitoring, with tally and camera number displayed, plus foldable hood.

Works with Sony 4K/HD cameras and camcorders

Compatible with Sony F65 digital motion picture camera, 4K/HD system cameras and shoulder-type HD camcorders supporting the HDVF 20pin round analog viewfinder interface.
