Product Highlights
  • Video Transmitter Compatibility
  • 6 kms Range
  • 2.4 - 5.85 GHz Operating Frequency
  • HDMI / SDI Input Audio Format
  • 70 ms Latency
  • 6-18 V Power Supply
  • 9 W Power
  • Kit includes Receiver, WB37 Battery Adapter, NP-F Battery Adapter, DC to P-Tap Power Cable, SDI Cable, USB-C Cable, 2x Antennas & Toolkit
Option:
Video Receiver
Transmission (Standard Combo)
DJI Video Receiver DJI Video Receiver
$2,549.00 Add to Cart
Add to Wishlist
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.

Overview

Video Receiver

Long-Distance HD Live Feed

Incorporates O3 Pro video transmission technology that offers an incredible 20,000ft  transmission distance at 1080p/60fps.

Key Features:

  • 20,000ft 1080p/60fps Transmission
  • Unlimited Number of Receivers
  • Seamless Auto Frequency Hopping
  • End-to-End Ultra-Low Latency
  • Transmits Metadata via SDI
  • Dual-link SDI + HDMI simultaneous output

Unlimited Number of Receivers

Broadcast mode allows an unlimited number of receivers, convenient for real-time monitoring by multiple teams for enhanced efficiency.

Triple-Band Seamless Auto Hopping

Supports triple-band automatic frequency hopping between 2.4 GHz, 5.8 GHz, and DFS for optimal wireless channel use.

End-to-End Ultra-Low Latency

Use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency.

Integrated Wireless Receiver

The DJI High-Bright Remote Monitor integrates monitor and receiver with expansion features and supportive tools for precise control.

Remote Gimbal/Focus/Camera Control

When used with Ronin 4D Hand Grips or DJI Master Wheels, you can remotely control Ronin 2, RS 3 Pro, focus, and camera functions.

Independent Recording and Playback

1080p/60fps H.264 footage can be independently recorded and stored on a microSD card, making it easy to edit samples right on set.

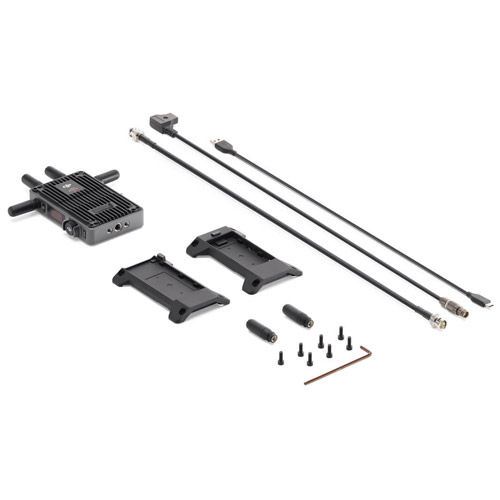

What's Included

Video Receiver
WB37 Battery Adapter
NP-F Battery Adapter (TX)
DC to P-TAP Power Cable
SDI Cable
USB-C Cable
2x Ronin Video Transmission Antennas
Installation Toolkit

Reviews

Product Specifications

Video Receiver
Weight DJI Video Receiver: Approx. 350 g (excluding antennas)
Dimensions DJI Video Receiver: 127×87×26 mm (L×W×H, excluding antennas)
Operating Frequency When using the DJI Video Transmitter with the DJI Video Receiver:
Non-DFS Frequency Band:
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz

DFS Frequency Band:
5.250-5.350 GHz
5.470-5.725 GHz
5.725-5.850 GHz
Transmitter Power (EIRP) When using the DJI Video Transmitter with the DJI Video Receiver:
2.4000-2.4835 GHz:
<33 dBm (FCC)
<20 dBm (SRRC/CE/MIC)

5.725-5.850 GHz:
<33 dBm (FCC)
<14 dBm (CE)
<23 dBm (SRRC)
Max Bandwidth 40 MHz
Max Bitrate 40 Mbps
Power Consumption DJI Video Receiver: 9 W
Power Supply Voltage 6 to 18 V
Output Voltage Power output port: 6 to 18 V
Operating Time DJI Video Receiver: 3 hours 50 minutes
Tested at room temperature (25°C/77°F) when powered by a fully charged WB37 Intelligent Battery and used with the DJI Video Transmitter.
Input Video Format DJI Video Transmitter:
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
720p: 50/59.94/60fps
Output Video Format When using the DJI Video Transmitter with the DJI Video Receiver:
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
720p: 50/59.94/60fps

When using the Ronin 4D Video Transmitter with the DJI Video Receiver:
1080p: 24/25/30/50/60fps
Input Audio Format SDI embedded, HDMI embedded
Output Audio Format PCM
Video Transmission System O3 Pro
Video Transmission Latency 70 ms
Measured when shooting 1080p/60fps video.
Video Coding Format H.264
Max Transmission Distance 6 km (FCC)
4 km (CE/SRRC/MIC)
Operating Temperature -10° to 45° C (14° to 113° F)
Mirror Control Mode Supported Camera Models ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).
