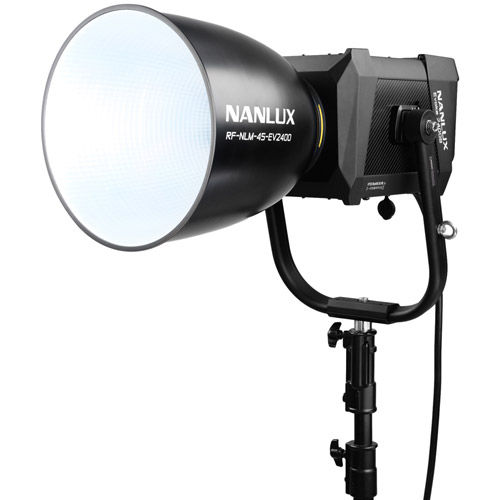

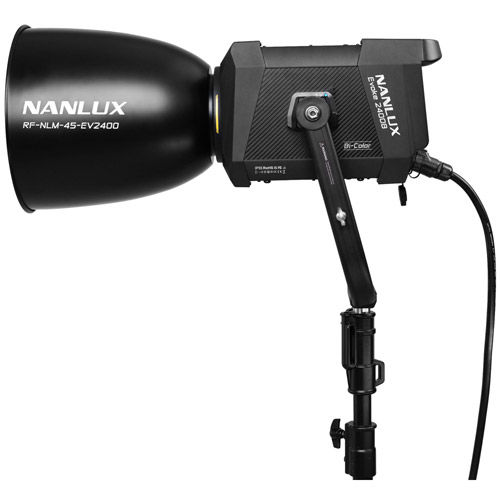

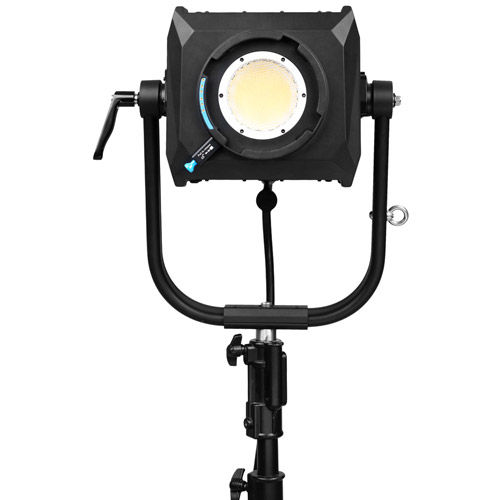

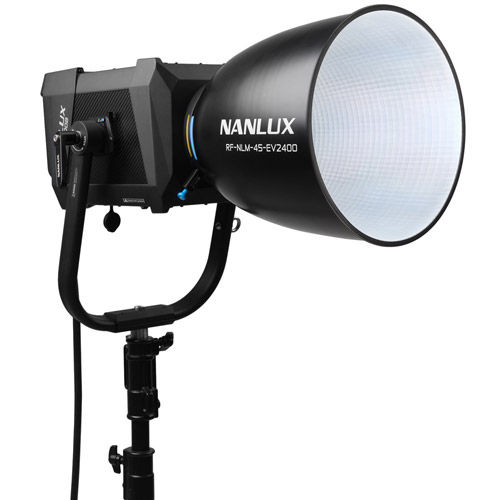

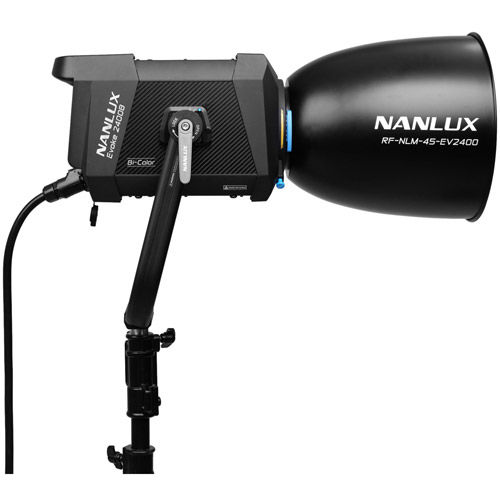

Nanlux Evoke 2400B Trolley Case Kit

Evoke 2400B Trolley Case Kit

Nanlux is a consistent leader in innovation and improvement in the field of motion picture LED lighting. Now, we are focusing our efforts even further by combining the ultra-high output of a 4KW HMI or a 10KW Tungsten and adding a Green-Magenta adjustment throughout the CCT range. Assembled with robust IP55 weather resistant housings that for both light head and power supply, the form factor is much lighter than the same output models. Introducing the new leader of the Evoke family: the Evoke 2400B.

With a rated power of only 2400W, the Evoke 2400B delivers outstanding efficiency as an LED, resulting in powerful light output beyond the 4KW HMI or 10KW Tungsten. Compared to traditional light sources, the Evoke 2400B's distinct advantages include no preheating or cool-down time delay, flicker-free, 0.0%-100.0% dimming and adjustable color temperature allowing for greater flexibility, making lighting setups easier and more efficient. Making changes during shooting sessions is now effortless and time-saving.

G/M±80, through Cold to Warm

Traditional bi-color LED lights produce the needed color temperature by mixing the output of two color temperature chip arrays, and this has its drawback: the middle color temperature range will be slightly magenta, and the two extreme ends of the range will be slightly green, so gaffers need to use plus or minus green gel to calibrate the light. To solve this problem, Nanlux has added a green and magenta color adjustment function to the Evoke 2400B, so throughout the adjustment process, the color temperature will always be on the Planck curve, resolving green and magenta issues.

Besides the G/M auto-calibration, Evoke 2400B's industry leading G/M adjustment function doesn't stop here, the extra G/M±80 △uv range throughout the whole CCT range simply gives creators a new dimension of creativity. It may be used to match different light sources of set locations or other manufacturers' fixtures, making post-production easier. It could also be used in fine-tuning the look of the image, such as adding the magenta tint to the ‘white’ light of a scene to enhance the skin tone, or creating a special atmosphere by adding the green tint to the ambient ‘white’ light of a set.

True-to-life Colour Rendition

The Nanlux team has refined the color reproduction capabilities of the Evoke 2400B in terms of color rendering, fidelity and saturation, to ensure that it will provide outstanding performance for the most technically demanding productions. Evoke 2400B continues to employ the rugged and durable metal construction design of the Evoke family, with IP55 rating for both lamp head and power supply. Magnesium alloy is innovatively utilized on the Evoke 2400B for a ideal strength-to-weight ratio, together with structural optimizations, enabling it to be a lighter fixture body than other lights that with the same power output. With a 100% increase in rated power compared to the Evoke 1200B, the power supply of Evoke 2400B weighs only 1kg/2.2lbs more than the original. With its combination of lightweight and ruggedness, the Evoke 2400B will certainly play an important role in different productions setups.

Complete and User-Friendly Controls

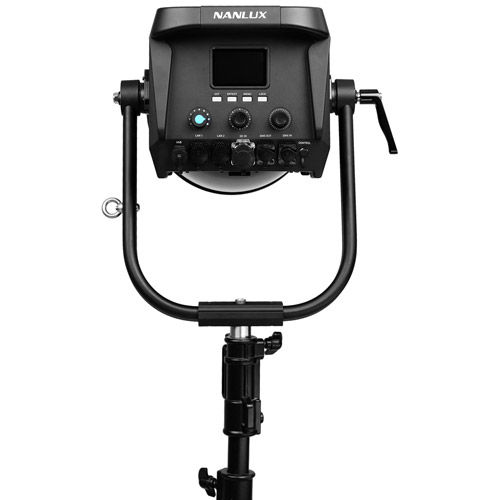

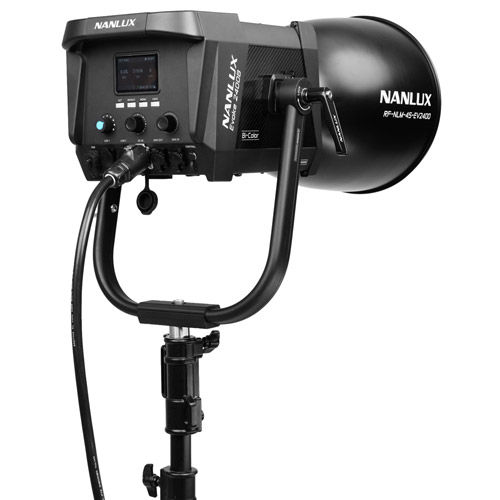

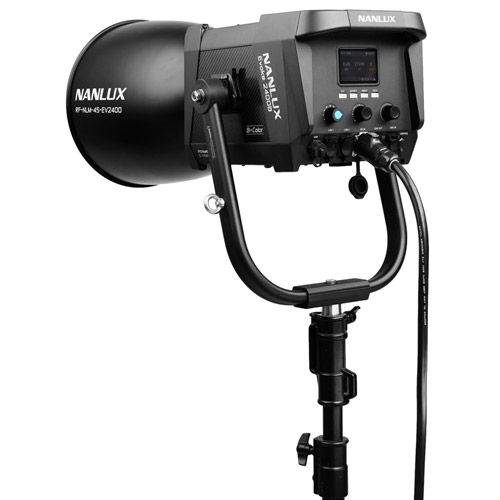

The fixture is equipped with four buttons, three knobs and 3.5-inch LCD screen, brings the intuitive and straightforward user interface for control. And the brightness can be switch between 0.0% and its currently set dimming position by short pressing the knob. Meanwhile, The Evoke 2400B's brightness could be adjusted in 0.1% increment, so the users can smoothly fine-tune dimming from 0.0% to 100.0% on the fixture.

Wired Controller

The Evoke 2400B has a Wire Control Socket on the lamp head that allows wire control communication through the wired controller. This provides a new convenient option of accurate and reliable control.

DMX/RDM

The fixture body is equipped with a 5-pin XLR DMX in & out port, supporting DMX/RDM control through a wired connection to a lighting control console for ensuring stable communication. The wired DMX/RDM connection control can meet the needs of film and television production teams for accurate and reliable group control
in complex lighting system.

Art-Net/sACN

The Evoke 2400B incorporates two LAN ports, supporting Ethernet control based on the Art-Net/sACN protocol. Through Ethernet control, the Evoke 2400B can not only
easily achieve a longer distance of signal transmission than traditional DMX cable, but also accomplish efficient control across multiple universes.

NANLINK APP

The Evoke 2400B is controllable by the NANLINK wireless control system through the built-in 2.4G and Bluetooth modules, allowing connection and control to become quick and precise through the use of personal devices.

LumenRadio CRMX

Through the LumenRadio TimoTwo module, Evoke 2400B can transmit or receive CRMX signal, and cooperate with other lighting fixtures with ease.

Intelligent, Quiet Heat Dissipation

The Evoke 2400B comes with a new generation of an adjustable cooling system that includes four fan modes: SMART, FULL SPEED, LOW SPEED and OFF, thus effortlessly meeting various shooting and sound recording requirements at the same time.

29 dBA Noise Level under SMART Mode

This new system with focus on both the heat dissipation and noise dampening benefits all productions and especially interviews, making distracting noisy cooling fans a thing of the past.

Numerous and Versatile Modifier Choices Intelligent Modifier Recognition

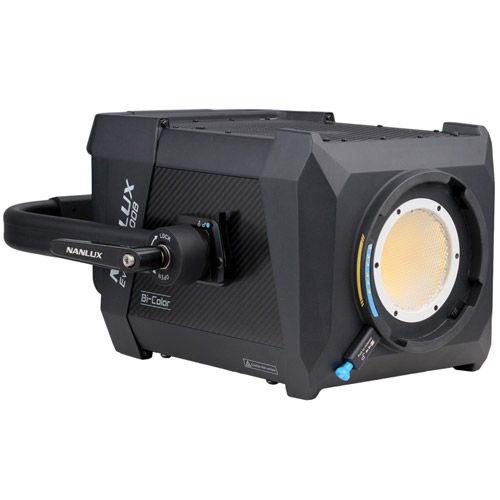

With the new electronic contacts on the NL mount, the Evoke 2400B is still compatible with all the existing NL mount softboxes and several other accessories. The modifier recognition function is enabled by these electronic contacts and tells the Evoke 2400B which modifier is in use. Thus, when using accessories with the electronic contacts NL mount installed, it provides safety and protects fixtures and accessories from being damaged due to rather high heat levels.
