Spectera Base Station Rackmount 64-Channel Bidirectional Wireless Transceiver UHF 470 to 663
No Reviews Q & A
Write your Review
Product Highlights
  • 19’’ 1 RU Base Station with redundant power supplies
  • Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) – country specific per region license
  • 4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage
  • Redundant Dante® audio interface
  • Sample rates of 48 kHz and 96 kHz
Sennheiser Spectera Base Station Rackmount 64-Channel Bidirectional Wireless Transceiver UHF 470 to 663 Sennheiser Spectera Base Station Rackmoun...
$12,999.00 Add to Cart
Add to Wishlist
FREE SHIPPING Available
Find it for less? Let us know.
Web Availability: Special Order
This product will be Special Ordered just for you from the manufacturer. We do not stock this item due to its uniqueness or import schedule. Special Order items are Final Sale, see our Return Policy for details.
Vistek Locations
  • Toronto Special Order
  • Ottawa Special Order
  • Mississauga Special Order
  • Calgary Special Order
  • Edmonton Special Order
Please call and verify availability at the store as stock changes daily.
Lease this for: $467.96 Learn More

Overview

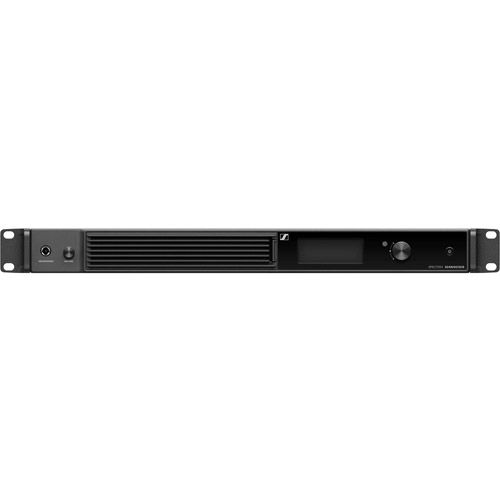

The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilizes up to two wideband RF carriers to accommodate all of the unit’s wireless transmission.

It features redundant Dante and optional redundant Madi, assuring seamless integration into your audio network. Additional antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity.

The Spectera Base Station supports sample rates of 48 kHz and 96 kHz and features individual sample rate converters for all audio interfaces and wordclock I/O. Base Station must be activated with license per region.

Features:
  • 19’’ 1 RU Base Station with redundant power supplies
  • Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) – country specific per region license
  • 4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage
  • Redundant Dante® audio interface
  • Two optional slots for redundant MADI (OM or BNC)
  • Sample rates of 48 kHz and 96 kHz
  • Individual sample rate converters for all audio interfaces
  • Wordclock I/O BNC
  • Synchronized clock for all audio over RF allows 3D recordings and playback
  • Adjustable RF power from 10 – 100 mW (country specific)
  • RJ45 network interface for full remote control with secured interface
  • 11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM
  • Secure transmission of confidential content using AES 256 encryption
  • Future expansion via Cascade port
  • Selective headphone output with volume control on front panel
  • OLED display, jog wheel navigation, and rugged metal housing
  • Base Station activation via LinkDesk: Spectera license defines respective frequency spectrum per region (license sold separately)

What's Included

Spectera Base Station
Mains Cable (EU, UK and US plug)
quick guide
safety guide

Reviews

Product Specifications

Detailed Specifications
Color Black

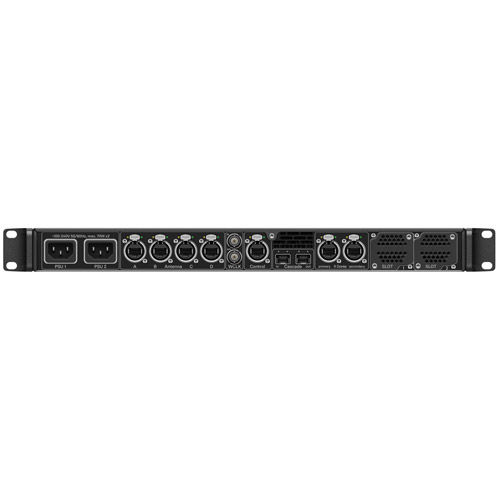

Connection ports (2) Dante® RJ 45 (Primary and Secondary) 32 In, 32 Out, 48 kHz, 96 kHz, 16/24/32 bit|(2) MADI (AES10) Expansion Slot 32 In, 32 Out, 48 kHz, 96 kHz, 16/24 bit|Individual sample rate for each interface|6.3 mm headphone jack, 2 × 50 mW at 32 Ω -40 dB THD (1%) at 1 kHz
Dante™ IEEE 802.3 (1000 Mbit/s), 2 × ruggedized RJ-45 connection
Latency (ms) tbd per ALM
Power consumption (Amp)
70 W x 2
